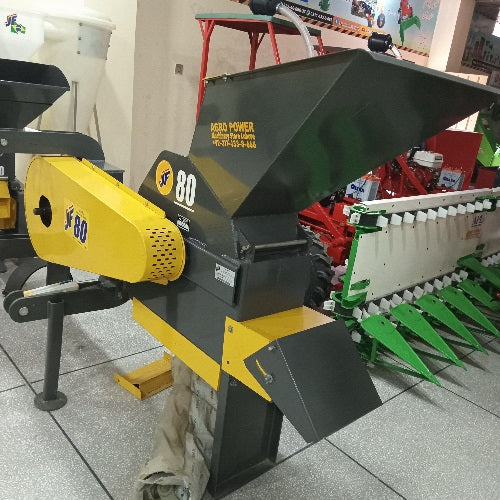

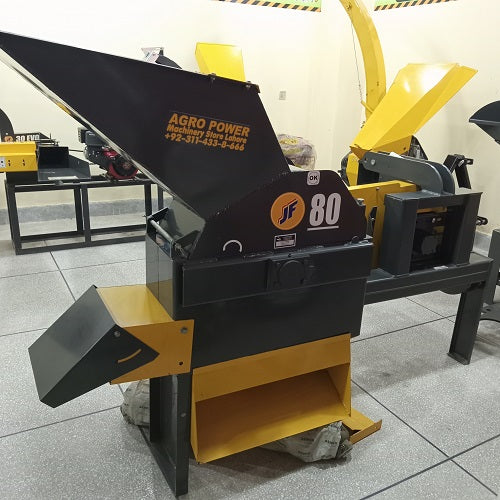

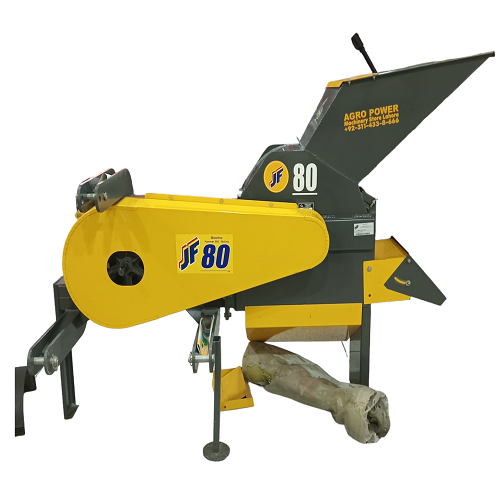

JF-80 Modal Chaff Cutter
JF-80 Modal Chaff Cutter
Characteristics
Hammer mill with productive capacity according to the technical table of this document, powered by tractor PTO or electric motor, featuring feeding noozle, side discharge chute, lower discharge chute, pulley bearing, structure built in steel, grinding rotor fully built in special steel, sieves with holes of 3mm, 5mm, 8mm, 10mm, 14mm and 18mm for special use with moist maize grain, dry maize grain, maize straw and cob. Available versions with base for electric motor or 3-point linkage powered by tractor PTO. Required power of 30hp for electric motor and 65hp for tractor PTO.
Benefits
• Higher profitability in production;
• Rotor and housing built in heavy duty carbon steel;
• Simple operation and maintenance;
• Higher productivity with low power consumption;
• Flat bottom (side discharge);
• Sieves with sizes 3, 5, 8, 10, 14 and 18mm (sold separately);
• Also can be used for grinding green or dry coconuts.
Number of hammers in the rotor | 48 |

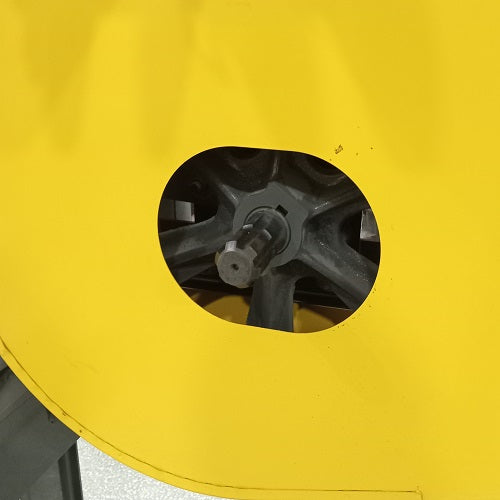

Power source | tractor PTO or electric motor |
Required electric motor power | 30 hp |
Required revolution³ | 1800 to 2000 rpm |
Tractor power (hp) | 65 hp |

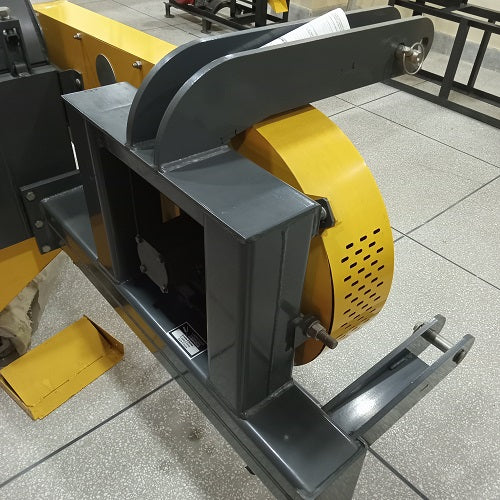

Versions | base for electric motor or 3 point linkage for tractor |
Weight | 350 Kg |
